Features

● Flexible and soft. Easy to wire in the racks.

● Color codes(8 colors) on the both sides of each unit sheath makes unit identification easy.

● T-DA202F-8P can transmit digital audio signal 160m.（AES SR48kHz）

● Foamed XLPE insulation makes the cable thin(φ11.2mm) and it fits with general D-sub 25pin        connectors.

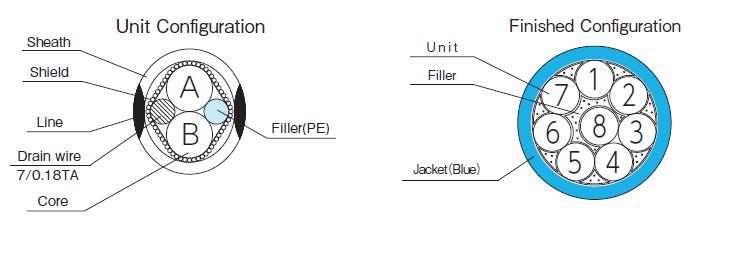

Configuration

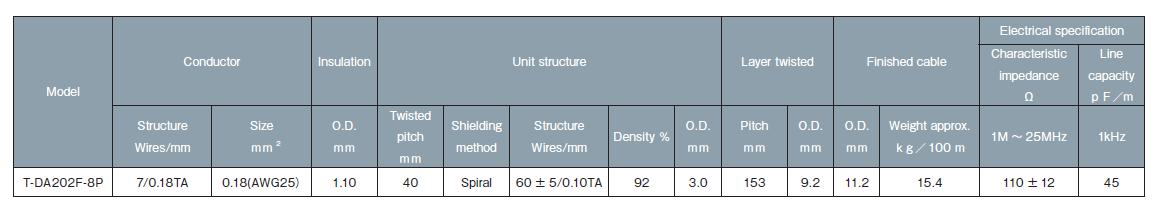

Construction/Properties

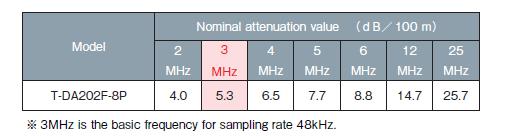

Nominal Attenuation
